Color Coated Galvanized Steel Sheet PPGI

Categories:

Color Coated Plate

Keywords:

WhatsApp : +8618954226796

Email: sales1@taihangmetals.com

Request Quote

Color Coated Galvanized Steel Sheet PPGI Description

Color-coated galvanized sheet PPGI is based on hot-dip galvanized sheet, electro-galvanized sheet, etc. as the substrate, after surface pretreatment, roller coating method, coated with one or more layers of liquid coating, after baking and cooling, the surface is rich in color, has good weather resistance, superior processing performance.
Color coated board can be divided into ordinary PE, high corrosion resistant HDP, high corrosion resistant silicon modified polyester SMP, high corrosion resistant fluorocarbon PVDF, super corrosion resistant nano fluorocarbon PVDF, aluminum magnesium manganese color coated board, printing color coated board, etc.
The varieties that can be produced are: ordinary building materials board, purification board, cold storage board, solar panel, door and window profile, household appliance board, writing board, printing board, reticulated suede color coating, embossed printing, aluminum magnesium manganese color coating board, high weather resistance, silicon modification, self-cleaning board, heat reflection board, antibacterial board, acid and alkali resistant color coating board, etc., which can meet customer requirements of different industries and provide technical support and solutions.

Product Parameters

Product Name	Color Coated Galvanized Steel Sheet PPGI
Thickness	0.12mm-1.2mm
Width	600mm-1250mm
Length	Support Customization
Color	According RAL Color Card (Can provide custom pattern)
Paint	PE, SMP, HDP, PVDF
Primer	Epoxy Primer, Polyester primer, Water soluble acrylic primer, Polyurethane Primer
Coating Thickness	Top: 11-35μm, Back: 5-14μm

Color Selection

We provide many colors to choose from, the following are common colors, if you like other colors or patterns, please send us the RAL color code.

Advantages of Color Coated Plate

Custom Colors
You can choose any RAL color, as well as customize the pattern according to your needs. The beautiful surface makes the color coated board decorative. So it can be directly used in many fields.
Tough Soating
Color coated steel plate including PPGL plate PPGI steel, the use of continuous coil coating, the surface luster bright, no cracking, no peeling. In addition, it can keep the color for at least 10 years.
Excellent Mechanical Properties
The color coated plate retains the mechanical properties of the base metal, such as tensile strength. In addition, the application of the coating can protect the surface from rust, thereby extending its service life. Studies have shown that the service life of color-coated steel sheets is 50% longer than that of galvanized steel sheets.
Easy to Use
Different from the coil, the color coated plate is a kind of finished product. This means that it can be directly used in many industries. Considering its light weight, it is easy to carry and install. In addition, due to its aesthetic appearance, no additional decoration is required. Also, less maintenance is required during the service life.

Coating Type

In the coil coating, the durability of the role is the resin and pigment, the most commonly used finish polyester, silicon modified polyester, high durability polyester and polyvinylidene fluoride.
Polyester PE
Good adhesion, rich color, wide range in formability and outdoor durability, medium chemical resistance, low cost.
Silicon Modified Polyester SMP
The hardness, abrasion resistance and heat resistance of the coating film are good; as well as good external durability and powder resistance, gloss retention, general flexibility and medium cost.
High Durability Polyester HDP
Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, good film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride PVDF
Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good formability, dirt resistance, limited color, and high cost.

FACTORY APPEARANCE

Whether it is carbon steel, stainless steel, galvanized, color-coated or profiles, we have in-depth research and rich practical experience. Each product embodies our efforts and wisdom to ensure that we provide customers with the highest quality and most reliable steel products.

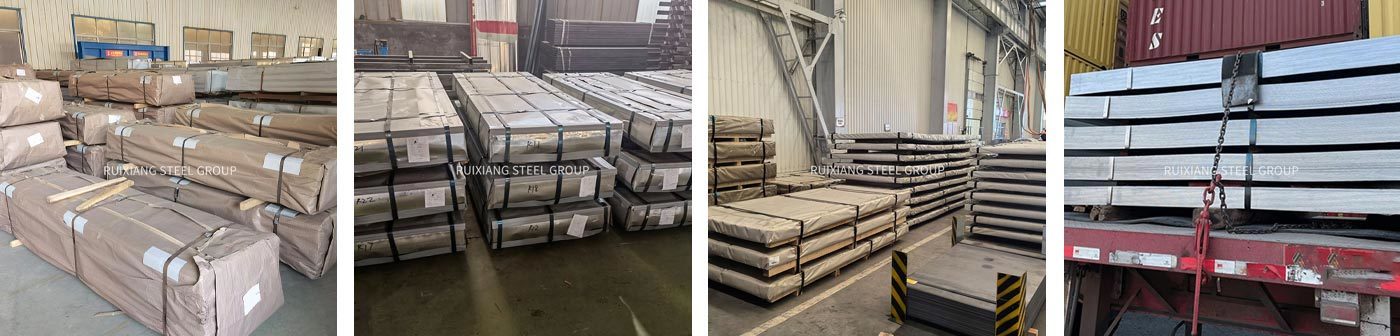

PACKING AND DELIVERY

Packing and delivery

The products have been exported to more than 100 countries and regions, including Turkey, Russia, Saudi Arabia, UAE, Iran, Kuwait, Poland, Philippines, Indonesia, Kazakhstan, Brazil, Mexico, Egypt, Nigeria, South Africa, Australia, etc.

CUSTOMER FEEDBACK

We strictly control product quality to ensure that every ton of steel meets national standards and provide customers with high-quality products. At the same time, we pay attention to after-sales service and always provide customers with thoughtful services, which has won the trust and praise of customers. We serve global customers with a global vision.

WHY CHOOSE TAIHANG STEEL

For the steel industry, customers value quality and after-sales service the most. We always adhere to high standards and strict requirements and are committed to becoming your preferred partner.

Quality Assurance

We are well aware that quality is the lifeline of the steel industry. Therefore, we adhere to strict quality control processes to ensure that each batch of steel products meets national standards and provides solid protection for your projects.

Industry Experience

With many years of industry experience, we have a deep understanding of market demand and can provide customized products and services according to customer needs to ensure that your business is fully supported.

Professional Team

We have a professional team with rich technical knowledge and practical experience. No matter what problems we encounter, we can respond quickly and provide effective solutions.

After-sales Service

We value the feedback of every customer and provide a full range of after-sales services to ensure that you have no worries during the cooperation process.

PRODUCT MEASUREMENTS

GET A FREE QUOTE

If you have any needs, we can tailor professional steel solutions for you.

WhatsApp : +8618954226796

Email: sales1@taihangmetals.com

APPLICATION AREAS

Automotive

Shipbuilding

Building Manufacturing

Machine Manufacturing

FAQ

Q:Once the products received by customer were found not comply with the products or contract demands, what will you do?

A:Our goods have passed QC inspection before export and provide regular MTC for customer review. In case of quality disputes, the customer shall inform the supplier within 7 working days after receiving the goods and arrange the international third party to carry out inspection and send the damage report to the supplier. Once confirmed by our company, our company unconditionally reissue or return shipping refund！

Q：How about the payment terms?

A:We accept a variety of payment terms, but there are specific restrictions: 1.Amount less than Fifty thousand dollars,we only accept TT payment; 2.Amount from $50,000 to $300,000,we accept TT deposit and balance by LC at sight; 3.Amount more than $300,000,we can do LC 180 days upon little down payment. Finally, we can provide OA service for our frequent customer cooperation and who have a good reputation & professional in their local market.

Q:Whether to accept inspection company and factory？

A：Whether you choose to work with us or not. We accept different customers personally or commissioned third parties to audit factory and company.And hereby promise not to charge any inspection fee or guarantee deposit in advance.

Q:How to ensure that the quantity and material delivered meet customer requirements?

A:We will take a video of each package of goods and record the pieces/weight of the goods. And material inspection through PMI.And assure all customers that if the quantity or material of the goods you receive does not match the order and send the exact evidence. Our company will fine you ten for one fake

Q:What is the delivery time?

A:Depends on whether the goods are in stock and the quantity. Stock Materials: Generally 7-10 days to complete the cutting and packaging and shipment; Customized Materials:About 20-30days for production and arrange the shipment.

Q：What is your MOQ?

A:All the materials at least for 2tons,but the price it’s relatively expensive. Up to 50 tons, a maximum discount of 5% is offered; 50 tons to 200 tons,can provide discount 5%-10%; More than 200tons can get discount 10%-20%. The larger the tonnage, the greater discount we can offer. Every Chinese and foreign holidays, our company has a lot of different strong discounts, welcome to pay attention to the company news consultation.
